Your GTO won't start after an ECM reprogram — and your shop has never seen a security system like this before. That's because it's not a GM system. It's a Holden. We know how to fix it.

Request ServiceCall (612) 355-9566

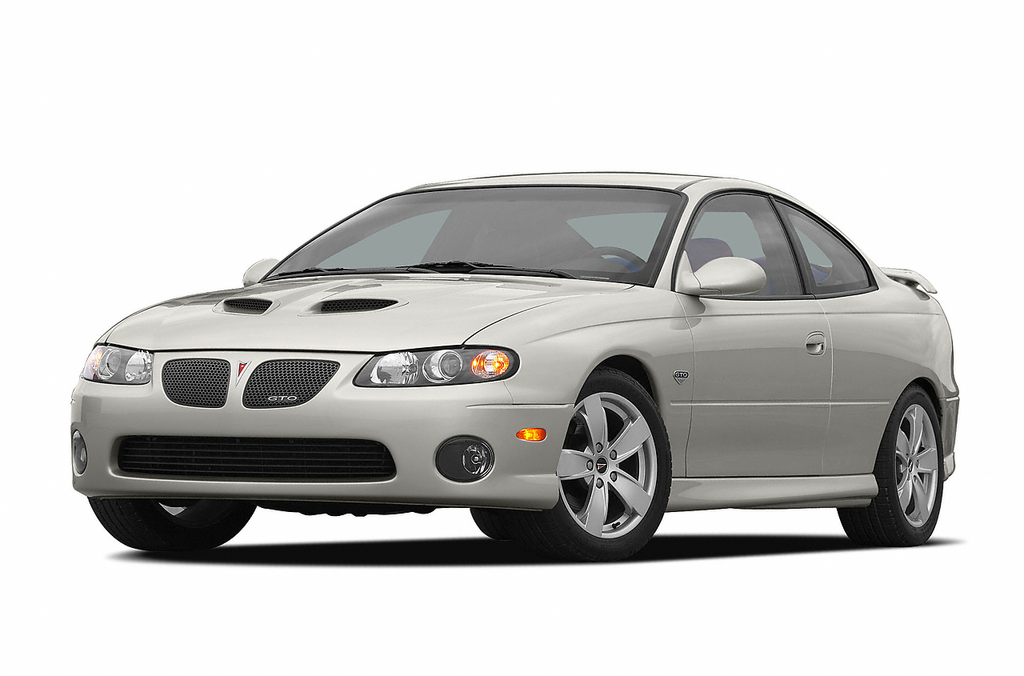

2004-2006 Pontiac GTO

The Problem: It's Not a Normal GM

The 2004–2006 Pontiac GTO is a rebadged Holden Monaro — an Australian car with a GM powertrain bolted in. Sitting between the Holden body electronics and the GM engine computer is a unique module called the PIM (Powertrain Interface Module), which acts as a translator and security gateway.

The immobilizer system links three modules — BCM, PIM, and ECM — with shared security credentials. When the ECM is reprogrammed (flashed, updated, or replaced), its stored immobilizer password gets wiped. The ECM-to-PIM security link drops, and the engine won't crank.

This is completely different from any other GM security system. There's no 30-minute relearn. No key cycle procedure. The only way to fix it is to relink the ECM to the PIM using the correct security PIN through a pass-through programming procedure.

Common Symptoms

  • →No-crank / no-start after ECM reprogramming or replacement
  • →Engine may crank and fire briefly, then stall immediately
  • →Security / immobilizer telltale light illuminated
  • →Fault code P0633 — Immobilizer Function Not Programmed
  • →Companion fault stored in PIM
  • →30-minute relearn doesn't work (that's Passlock — the GTO uses IMMO)

Why Most Shops Get Stuck

Holden, Not GM

The GTO's immobilizer is a Holden system — Immobilizer 3 — not a GM Passlock or conventional theft deterrent. US-market shops and tools often don't have Holden/Australian software coverage, so the right procedures simply aren't in their menus.

PIN Recovery

The relink requires a 4-digit security PIN. Getting it through the dealer often requires the registered owner to appear in person with proof of ownership. If the card is lost and the dealer won't cooperate, most shops are dead in the water.

Modern Tools Can Fail

Even GM's current programming tools (SPS2/TLC) can accept the correct PIN and then error out on the relink step. The reliable fix often requires legacy tooling that most shops no longer have or know how to use.

What We Do

We've worked through the GTO's Holden immobilizer system from end to end — including the failure modes, the tool quirks, and the PIN recovery paths that most shops never encounter. Whether it's a no-start after an ECM flash or an all-keys-lost situation, we have the procedures and tooling to resolve it.

1

ECM Immobilizer Relink

  • • Recover from no-start after ECM programming
  • • ECM-to-PIM security relink (pass-through)
  • • Security PIN recovery when the card is lost
  • • P0633 resolution
  • • ECM replacement and programming
2

Key & Fob Programming

  • • Program new or additional keys and fobs
  • • All-keys-lost recovery
  • • BCM-to-PIM security linking
  • • Holden Immobilizer 3 specific procedures
  • • Full security code recovery when needed

Why This Matters to GTO Owners

The 2004–2006 GTO is becoming a collectible. Finding a shop that can properly service the immobilizer system — without guessing, without brute-forcing lockout timers, and without recommending an ECM swap as a first option — is getting harder. We treat these cars with the knowledge they require.

Frequently Asked Questions

Why won't my Pontiac GTO start after an ECM reprogram?
The GTO uses a Holden Immobilizer 3 security system with a three-way link between the BCM, PIM (Powertrain Interface Module), and ECM. When the ECM is reprogrammed, its stored immobilizer password is cleared — breaking the ECM-to-PIM security link. Until that link is re-established with the correct security code, the engine won't crank. This is documented in GM PI #PIC4093A.
What is the PIM and why does it matter?
The PIM (Powertrain Interface Module) is a gateway unique to the GTO that sits between the Holden body electronics and the GM powertrain. It translates between the two systems and manages the immobilizer security link. The GTO is a rebadged Holden Monaro — so it's not a typical GM security system, which is why most GM shops struggle with it.
Why can't my regular GM shop fix this?
Most GM shops and even dealers aren't familiar with the Holden immobilizer system. The GTO's security architecture is completely different from other Pontiac or GM vehicles. Standard GM diagnostic approaches don't apply — the relink requires specific tooling, specific procedures, and knowledge of the Holden platform that very few technicians in the US have.
What is fault code P0633?
P0633 (Immobilizer Function Not Programmed / Immobilizer Key Not Programmed – ECM) is the DTC that sets when the ECM's immobilizer password has been cleared. It's the telltale sign that the ECM-to-PIM link needs to be re-established. You'll typically see a companion fault in the PIM as well.
Can you program keys and fobs for a GTO?
Yes. Key and fob programming on the GTO requires the 6-digit BCM security code and Holden-specific procedures. Most locksmiths and key programmers with standard US-market tools can't access the Holden system. We have the tooling and experience to handle GTO key programming, including situations where keys need to be added or all keys are lost.
Can you handle ECM replacements on the GTO?
Yes. Whether you need an ECM reprogrammed, replaced, or relinked after a flash, we handle the full scope — including the immobilizer relink that has to follow. The E40 ECM in the GTO is a two-year-only unit with its own quirks, and we're familiar with all of them.
What years does this apply to?
The 2004–2006 Pontiac GTO (all variants, including the LS2 models). All use the same Holden Immobilizer 3 system with the BCM-PIM-ECM security architecture.
Do I need to bring the car to you?
Yes — the vehicle must be present for the ECM-to-PIM relink and any key programming. The procedure requires direct communication with the vehicle's security system through the OBD-II port. Contact us to arrange service at your shop or at our location in Spring Lake Park.

GTO Won't Start After Programming?

If your GTO is sitting with a security light on and a P0633 code after an ECM flash, don't let another shop guess at it. This is a Holden immobilizer problem, and we have the fix.
