Jaguar XF
BCM Repair

VIN shows garbage. Dash says "Key Not Detected." Car won't start. The battery died and took the BCM's data with it. We repair the corrupted memory at the board level — or virginize and reprogram the module when the data is gone completely.

Request ServiceCall (612) 355-9566

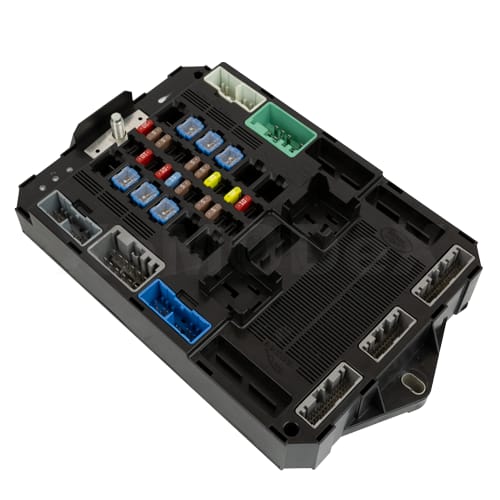

Jaguar BCM / Central Junction Box module

Jaguar BCM (Central Junction Box) — the module that fails after battery discharge.

The Problem: Dead Battery Corrupts the BCM

The Jaguar XF's BCM (Body Control Module), also called the Central Junction Box, stores critical vehicle data including the VIN, immobilizer codes, and key pairing information in its internal memory. When the vehicle battery dies or drops critically low, this data can become corrupted or erased entirely.

Once corrupted, the BCM can't verify the vehicle's identity or recognize the keys. The VIN shows as scrambled characters or question marks in diagnostics, the dash displays "Key Not Detected," and the vehicle is completely immobilized.

Standard diagnostic tools can't fix this because the corruption is in the BCM's internal microcontroller memory — not accessible through the vehicle's OBD-II port. It requires board-level access to read, repair, and rewrite the data.

Common Symptoms

  • →VIN shows as garbage characters or ????????? in diagnostics
  • →Dashboard displays "Key Not Detected"
  • →Vehicle will not key-on or start
  • →BCM may show no communication on scan tool
  • →Problem started after a dead battery or electrical event

Two Paths to Recovery

The repair path depends on the state of the BCM's internal data. We diagnose which scenario applies and proceed accordingly.

1

EEPROM Data Repair

Data recoverable

When the BCM's memory contains corrupted but recoverable data, we repair it directly.

  • • Read corrupted data from the microcontroller
  • • Repair the VIN, immobilizer, and key data
  • • Write corrected data back to the module
  • • Original keys continue to work
  • • No reprogramming required — reinstall and go
2

BCM Virginization

Data completely gone

When the memory is completely empty, the module must be restored from a factory-fresh state.

  • • Write a matching virgin factory file to the BCM
  • • Configure as a new module via Jaguar SDD
  • • Full key programming included
  • • PCM-to-BCM immobilizer link (Final Security)
  • • Vehicle must be present for final steps

Why Most Shops Can't Fix This

Board-Level Access Required

The corrupted data lives inside the BCM's microcontroller — not accessible through the OBD-II port. The module has to be opened and connected directly through BDM pads on the circuit board.

Specialized Data Repair

Repairing corrupted EEPROM data on a Jaguar BCM isn't the same as a standard module reprogram. It requires understanding the specific memory layout, partition structure, and data format — knowledge that comes from hands-on experience with these modules.

Immobilizer Integration

In virginization cases, the BCM must be configured as a new module through Jaguar SDD, keys must be programmed, and the PCM-to-BCM security link must be established through Final Security. This requires Jaguar-specific tooling and procedures.

Also Applies to Other Jaguar & Land Rover Models

Similar BCM failures occur across other Jaguar and Land Rover models from the same era with related module architectures. The specific repair process may vary by model. Contact us with your vehicle details.

Frequently Asked Questions

What causes the Jaguar XF BCM to fail?
The most common cause is a battery discharge event — the vehicle battery dies or drops critically low, and the BCM's internal data becomes corrupted. The VIN gets scrambled (showing garbage characters or question marks in diagnostics), the dash displays 'Key Not Detected,' and the vehicle won't key-on or start.
What are the symptoms of a corrupted BCM?
The telltale signs are: VIN reads as garbage or question marks in the diagnostic tool, the dashboard shows 'Key Not Detected,' the vehicle won't key-on or start, and the BCM may not communicate at all. These symptoms typically appear after a dead battery or electrical event.
Can the BCM always be repaired, or does it sometimes need replacement?
It depends on the state of the data. If the internal memory still contains recoverable data (even if corrupted), we can repair it — restoring the VIN, immobilizer data, and key pairing. If the memory is completely empty (no data at all), the module needs to be virginized and reprogrammed as a new unit, which includes key programming and security linking.
What's the difference between EEPROM repair and virginization?
EEPROM repair restores the corrupted data in your existing BCM — your original keys continue to work and no reprogramming is needed. Virginization is for cases where the data is completely gone: we write a fresh factory file to the module and then program it as a new BCM, including new key programming and immobilizer linking. Either way, the vehicle is restored to full function.
Will my existing keys still work after the repair?
If we can repair the EEPROM data, yes — your original keys will work with no additional programming. If the module needs to be virginized (data completely unrecoverable), new key programming is part of our service. We handle the full scope either way.
Does this apply to other Jaguar or Land Rover models?
Yes. Similar BCM failures occur across other Jaguar and Land Rover models from the same era that use related module architectures. The specific repair process may vary slightly by model. Contact us with your vehicle details and we can confirm whether we can help.
Can I send the BCM to you for repair?
Yes. The BCM (Central Junction Box) can be removed and shipped to us for repair. We'll diagnose whether it's a data repair or virginization case, perform the work, and ship it back. For virginization cases where key programming is needed, the vehicle must be present for the final steps.
Why can't my regular shop or dealer fix this?
This repair requires reading and writing directly to the BCM's microcontroller through board-level connections — not through the vehicle's diagnostic port. Standard diagnostic tools like Jaguar SDD/Pathfinder can't fix corrupted internal memory. Most shops don't have the equipment or experience for this type of board-level work.

Jaguar Won't Recognize Your Key?

If your Jaguar's VIN is scrambled and the dash says "Key Not Detected" after a dead battery, the BCM data is corrupted. We repair it at the board level — data recovery or full virginization. Ship us the module or bring the car in.
